Model:GY-MB-20
Packaging Speed: 15-20 pcs/minute
Applicable Container: Plastic bottle, Glass bottle, Tins and Cans
Maximum package size:L450*W450*H350
Bottle Diameter: 60-90 mm
Height < 330mm
Machine Dimension:L13800mm*W1100mm*H2100mm
Transfer Belt Width:550mm
Shrinkage temperature:130-260℃
Sealing And Cutting Time :0.5-1s
Number of bottles per package (round or square)
4 columns 4 x 6 4 x5 applicable bottle size:4 x 4 Ф 40 - Ф 70 mm
3 columns 3 x 3 applicable bottle size:3 x 4 Ф 70 - Ф 98 mm
2 columns 2 x 3 bottle diameter:2 x 4 Ф 98 - Ф 140 mm
1 column 1 x 2 x 1 applicable bottle diameter:1 x Ф140 - Ф300 mm

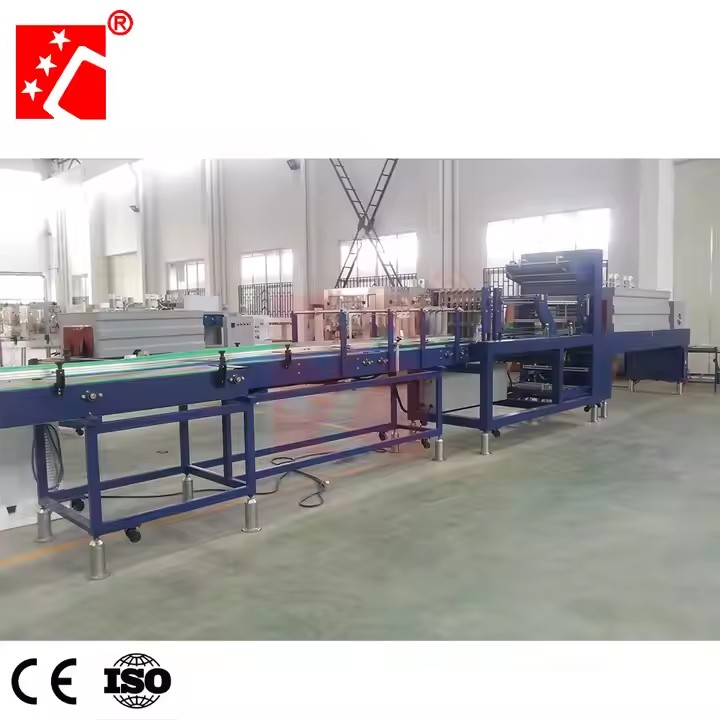

This bottle shrink packing machine is Widely use for water ,oil,beer, drinks, chemicals and others field. With high capacity lower cost .
Follow the capacity and packing size nomal ,we have these models
Smaller linear bottle pe shrink packing machine
Automatic Sleeve Shrink Wrapping Machine For Bottle
Sleeve wrapping machine + PE film shrink packing machine
Shrink-Wrapping Packing Machine
|
Model:GY-MB-20
Packaging Speed 15-20 pcs/minute Maximum package size:L450*W450*H350 Bottle Diameter: 60-90 mm Height < 330mm Machine Dimension:L13800mm*W1100mm*H2100mm Transfer Belt Width:550mm Shrinkage temperature:130-260℃ Sealing And Cutting Time :0.5-1s Heat sealing and cutting temperature:180-260℃ 4 columns 4 x 6 4 x5 applicable bottle size:4 x 4 Ф 40 – Ф 70 mm 3 columns 3 x 3 applicable bottle size:3 x 4 Ф 70 – Ф 98 mm 2 columns 2 x 3 bottle diameter:2 x 4 Ф 98 – Ф 140 mm 1 column 1 x 2 x 1 applicable bottle diameter:1 x Ф140 – Ф300 mm |
| 1.bottle separater and feeder |  |
| 2.bottles pusher |  |
| 3.film Cover and film sealing |  |
| 4.bag shrinking and cooling | |
| control system |  |
Follow different capacity ,The automatic bottle shrink wrapping machine has these model:
| SHRINK WRAPPER | One Roll PE Shrink Film Tray Wrapping Shrinking Machine | |
| GY-MB-10 | 8-10case/min | |
| GY-MB-13 | 10-15case/min | |
| GY-MB-20 | 15-20case/min | |
| GY-GB-20 | 15-20case/min | |
| GY-GB-30 | 25-30case/min | |
| GY-GB-45 | 40-45case/min | |
| GY-GB-60 | 55-60case/min |
